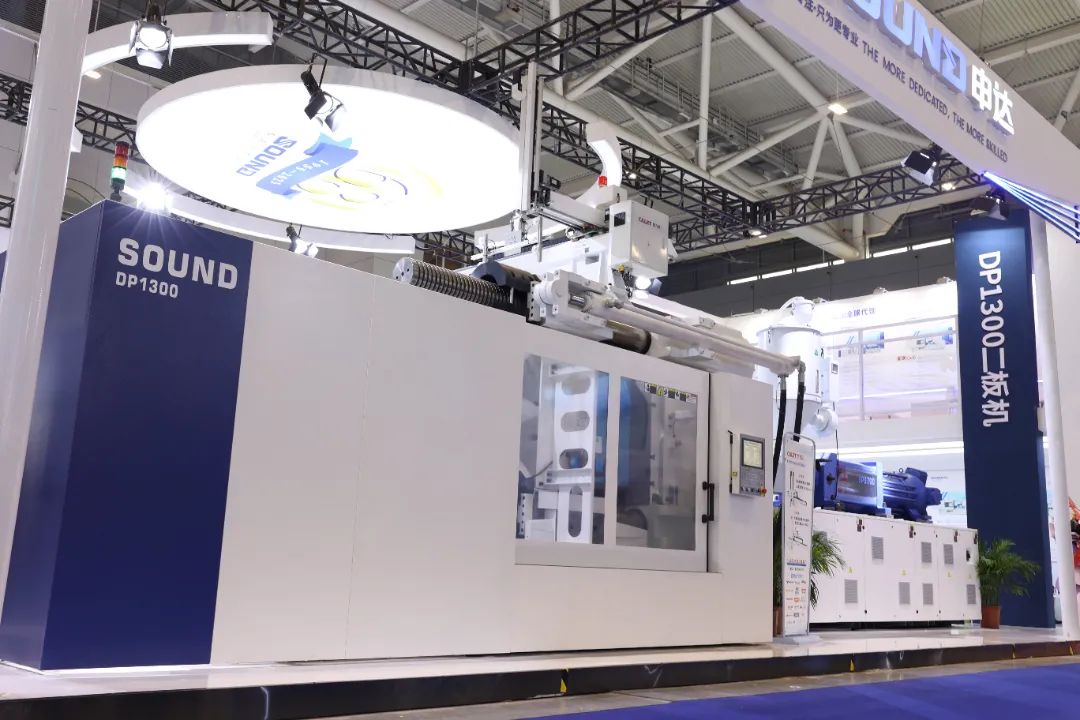

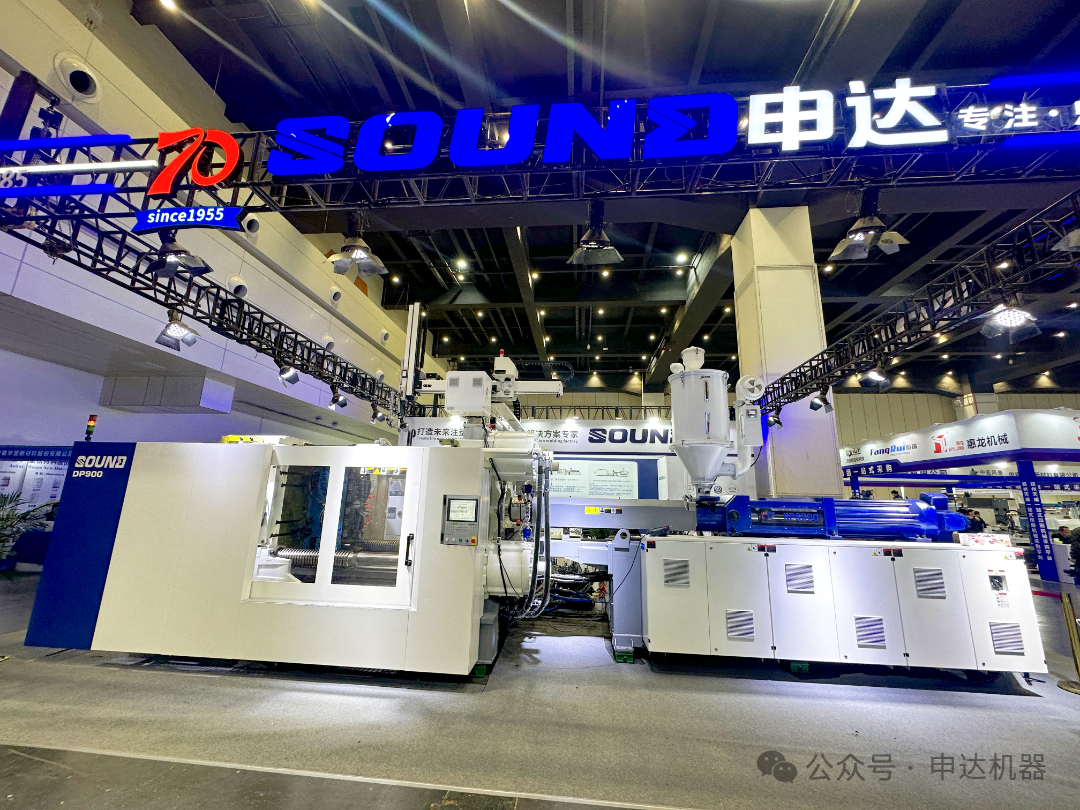

DP Two-Platen Series Injection Molding Machine

High Quality

• Built with a robust two-platen structure and modular mechanical, hydraulic, and electrical systems, the DP series ensures long-term reliability and adaptability to custom production requirements.

• The large die opening stroke is not restricted by mechanical structure, and can be extended based on specific molding processes—offering maximum flexibility.

High Efficiency

• The two-platen design requires less floor space compared to traditional three-platen machines, significantly improving plant space utilization.

• Its modular configuration allows for faster commissioning and simplified maintenance, reducing downtime and boosting operational efficiency.

Precision

• Features opening and closing mold position accuracy of ±0.2mm, meeting the high precision demands of automated robotic take-out systems.

• Delivers injection position accuracy of ±0.2mm and product repeatability of ≤5%, ensuring dimensional consistency and stable process control.

• Equipped with real-time scanning capability, rapid system response, and accurate digital analysis—enabling highly responsive and controlled injection cycles.

Energy Saving

• The compact machine footprint reduces infrastructure investment costs and energy usage associated with large-scale installations.

• Optional integration with smart factory systems enhances intelligent energy management, making it compatible with Industry 4.0 environments.

Mode-locking Unit

●High rigidity and high flatness template: template deformation is small, mold deformationis small, long life, short dry cycle empty cycle, high efficiency and energy saving, highprecision products, less flying edge, save material;

●Opening and closing mold position precision soil 0.2mm, to meet higher requirements ofautomatic take-up;

●Box-type mold locking fuselage structure design, so that the machine is stable, morestable operation;

●T type high rigid linear sliding foot: stable formwork support system, 0.05mm guidanceaccuracy, to ensure the fast and smooth operation of the template;

●Synchronous lock system, lock fast, stable, accurate and reliable;

●Short stroke high pressure cylinder design, fast response to pressure construction, morestable and stable mold closing, piston connection using floating structure more reasonableforce, oil circuit using European technology - opening and closing mold action controlmore rapid and stable;

●No contact tie rod no friction, low energy consumption, excellent mold protection deviceclean and tidy mold area.

Injection Molding Unit

●The system adopts a single-cylinder injection structure, featuring a compact design with low inertia, resulting in high injection precision and improved energy efficiency.

●Constructed with high-rigidity ductile iron, the injection base minimizes structural deformation and ensures stable, repeatable injection performance.

●Equipped with low-friction injection cylinders, the unit delivers fast dynamic response, enhanced accuracy, and higher operational efficiency—while consuming less energy.

●The retract system utilizes a small oil chamber design to reduce injection resistance, achieving greater efficiency, precision, and energy savings.

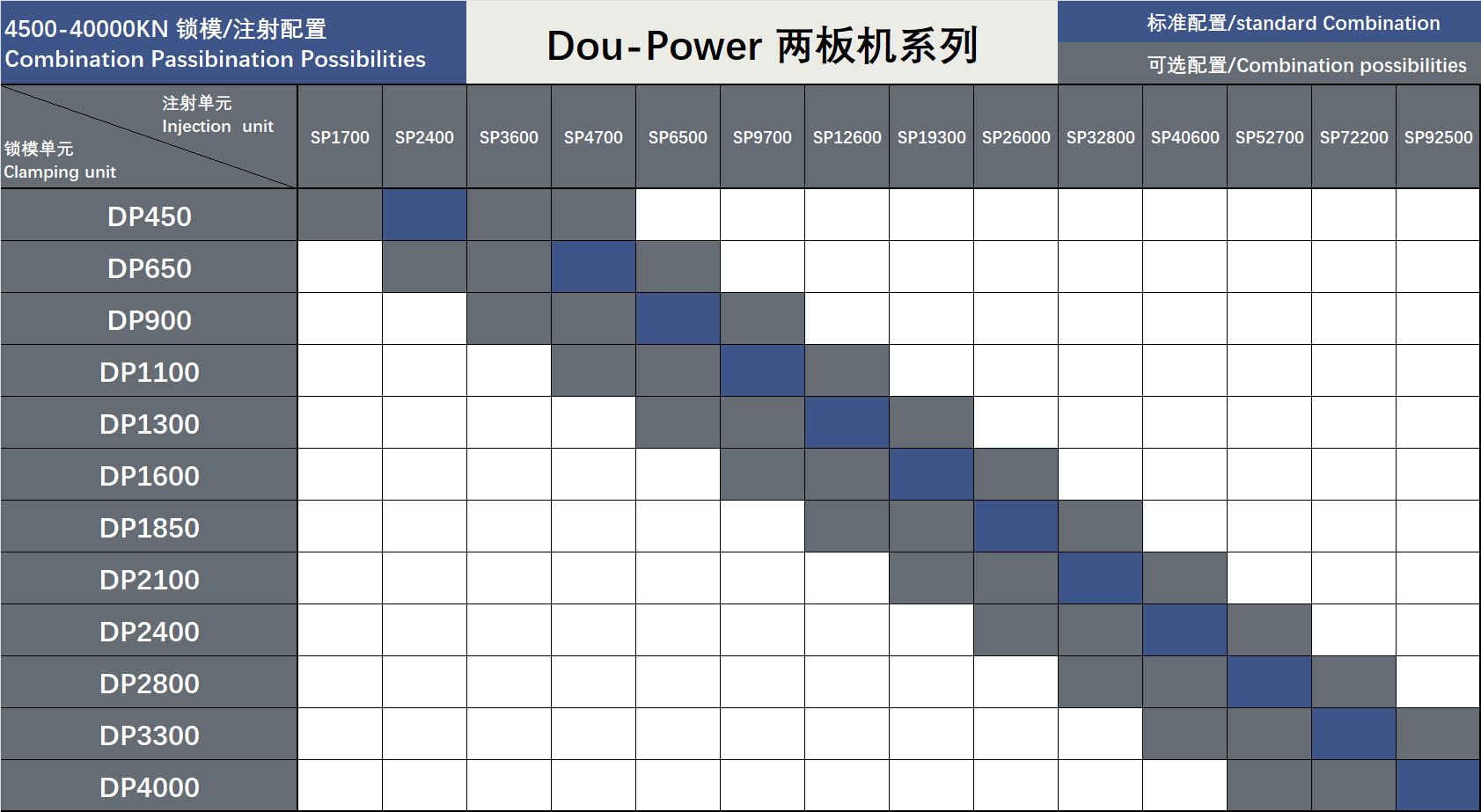

●Modular design enables quick disassembly and free configuration of injection units, allowing flexible combinations to meet diverse customer production needs.

●Features stable feeding port temperature control, ensuring uniform plasticization and melt stability across cycles.

●Incorporates advanced European screw design technology, compatible with various screw diameters, wear grades, and special geometries (including mixing types). This ensures broad application adaptability and optimal performance across a wide range of materials.

Hydraulic Die Unit

●The hydraulic die unit provides stable and accurate mold opening and closing, ensuring safer mold operation and a higher product qualification rate.

●Its compact design minimizes space usage while offering excellent cooling performance. The system maintains a constant oil temperature, unaffected by mold cycle time or external environmental factors, resulting in smooth and consistent machine operation.

●Featuring fast response and prolonged high-pressure holding capability, the mold opening and clamping process is more stable, even under demanding conditions.

●Back pressure is controlled via a proportional valve, enabling high-precision pressure adjustments and consistent plasticizing performance.

●The DP series two-platen Injection Molding Machine is equipped with a specialized Austrian KEBA control system, designed specifically for two-platen architectures. It delivers robust performance and precise control over pressure, speed, temperature, and position. The control platform is stable, safe, reliable, and offers a user-friendly interface for a superior operational experience.
